Black oxide hand woven stainless steel wire rope mesh
1. introduction

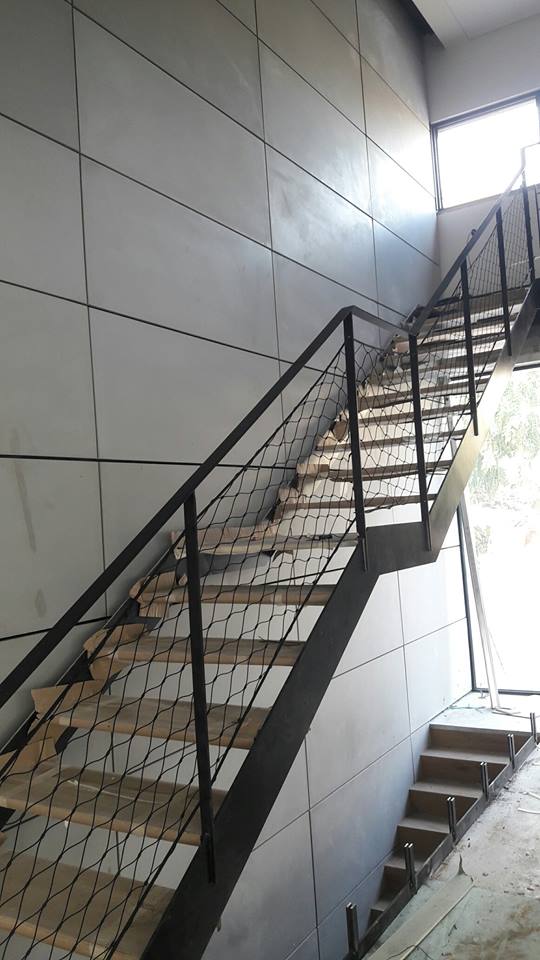

This mesh with the black oxide surface treatment, with the better features of anti- rust and widely used in sun- direct area and sea project . Especially the ferrule type mesh, is found as stairs railing infill mesh, anti- fall safety mesh, plant climbing net and decorative elements of modern buildings. Ferrule ss316 material black oxide wire rope mesh , is almost similar to stainless steel knotted rope mesh in physical properties. Which is made of stainless steel ferrule and stainless steel wire, as an emerging product on architectural decoration and protection. stainless steel rope mesh has provided the mordern architectural decoration and horticulture engineering with a new and stylish element, which are getting more and more appreciated by designeers and clients all over the world. With the feature of flexible, light weight, anti-rust, nice view effect and srong enough.
2. Specifications
The list of black oxide hand woven stainless steel wire rope mesh |
Code | Wire Rope Construction | Min. Breaking Load | Wire Rope Diameter | Aperture |
| Inch | mm | Inch | mm |
| YT-3210W | 7x19 | 8.735 | 1/8 | 3.2 | 4" x 4" | 102 x 102 |
| YT-3276W | 7x19 | 8.735 | 1/8 | 3.2 | 3" x 3" | 76 x 76 |
| YT-3251W | 7x19 | 8.735 | 1/8 | 3.2 | 2" x 2" | 51 x 51 |
| YT-2410W | 7x7 | 5.315 | 3/32 | 2.4 | 4" x 4" | 102 x 102 |
| YT-2476W | 7x7 | 5.315 | 3/32 | 2.4 | 3" x 3" | 76 x 76 |
| YT-2451W | 7x7 | 5.315 | 3/32 | 2.4 | 2" x 2" | 51 x 51 |
| YT-2076W | 7x7 | 3.595 | 5/64 | 2.0 | 3" x 3" | 76 x 76 |
| YT-2051W | 7x7 | 3.595 | 5/64 | 2.0 | 2" x 2" | 51 x 51 |
| YT-2038W | 7x7 | 3.595 | 5/64 | 2.0 | 1.5" x 1.5" | 38 x 38 |
| YT1676W | 7x7 | 2.245 | 1/16 | 1.6 | 3" x 3" | 76 x 76 |
| YT-1651W | 7x7 | 2.245 | 1/16 | 1.6 | 2" x 2" | 51 x 51 |
| YT-1638W | 7x7 | 2.245 | 1/16 | 1.6 | 1.5" x 1.5" | 38 x 38 |
| YT-1625W | 7x7 | 2.245 | 1/16 | 1.6 | 1" x 1" | 25.4 x 25.4 |
| YT-1251W | 7x7 | 1.36 | 3/64 | 1.2 | 2" x 2" | 51 x 51 |
| YT-1238W | 7x7 | 1.36 | 3/64 | 1.2 | 1.5" x 1.5" | 38 x 38 |
| YT-1225W | 7x7 | 1.36 | 3/64 | 1.2 | 1"x1" | 25.4x25.4 |
| |
3. Applications;
Black oxide hand woven stainless steel wire rope mesh is usually used in animal or bird cages, which is also called zoo mesh.The mesh has strong tensile strength and high flexibility,high transparence and wide span. The flexible s.s. cable mesh has unreplacable advantages compared with other mesh products in many aspects like practicability, security, aesthetic property and durability etc.
4. Characteristics:
The structures of: 7 x 7 and 7 x 19. Standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64", the standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
Rhombus mesh has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow and hurricane. Stainless steel ferrule rope mesh, is almost similar to stainless steel knotted rope mesh in physical properties.
Because of the material is virtually indestructible stainless steel, it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications. No matter how large, how small, or how cunning you specimens are, we assure their complete security.
